背景
调研 PEGA 8.x 升级至 PEGA Infinity 23，因此做个记录，仅供学习参考。
前置条件
请确保以下软件已安装，版本可根据个人需求进行变更
Note: 记得备份！备份！备份！
升级步骤
容器镜像申请
添加 PEGA Helm 仓库
使用 helm repo add 指令添加 PEGA helm 仓库
root@k8s-master:/vm-server/dev/pega23/helm# helm repo add pega https://pegasystems.github.io/pega-helm-charts
"pega" has been added to your repositories
验证仓库列表
root@k8s-master:/vm-server/dev/pega23/helm# helm search repo pega
NAME CHART VERSION APP VERSION DESCRIPTION
pega/pega 3.24.2 Pega installation on kubernetes
pega/addons 3.24.2 1.0 A Helm chart for Kubernetes
pega/backingservices 3.24.2 Helm Chart to provision the latest Search and R...
下载 helm 配置文件
根据自身需求分别下载 pega/pega, pega/addons and pega/backingservices 中的 values 配置文件。
本次笔记内容包含 pega/pega 与 pega/backingservices
下载 pega/pega
root@k8s-master:/vm-server/dev/pega23/helm# helm inspect values pega/pega > pega.yaml
下载 pega/backingservices
root@k8s-master:/vm-server/dev/pega23/helm# helm inspect values pega/backingservices > backingservices.yaml
查看文件
root@k8s-master:/vm-server/dev/pega23/helm# ls -alh
total 52K
drwxr-xr-x 2 root root 4.0K Aug 28 17:09 .
drwxr-xr-x 5 root root 4.0K Aug 28 16:53 ..
-rw-r--r-- 1 root root 9.0K Aug 28 17:09 backingservices.yaml
-rw-r--r-- 1 root root 30K Aug 28 17:08 pega.yaml
升级数据库
配置 pega_upgrade.yaml (pega.yaml 的复制品)
---
global:
# This values.yaml file is an example. For more information about
# each configuration option, see the project readme.
# Enter your Kubernetes provider.
provider: "k8s"
# Enter a name for the deployment if using multi-tenant services such as the Search and Reporting Service.
customerDeploymentId:
deployment:
# The name specified will be used to prefix all of the Pega pods (replacing "pega" with something like "app1-dev").
name: "dev-upgrade"
# Deploy Pega nodes
actions:
execute: "upgrade"
# Add custom certificates to be mounted to container
# to support custom certificates as plain text (less secure), pass them directly using the certificates parameter;
# to support multiple custom certificates as external secrets, specify each of your external secrets
# as an array of comma-separated strings using the certificatesSecrets parameter.
certificatesSecrets: []
certificates: {}
# Add krb5.conf file content here.
# Feature is used for Decisioning data flows to fetch data from Kafka or HBase streams
kerberos: {}
# If a storage class to be passed to the VolumeClaimTemplates in search and stream pods, it can be specified here:
storageClassName: ""
# Provide JDBC connection information to the Pega relational database
# If you are installing or upgrading on IBM DB2, update the udb.conf file in the /charts/pega/charts/installer/config/udb directory with any additional connection properties.
jdbc:
# url Valid values are:
#
# Oracle jdbc:oracle:thin:@//localhost:1521/dbName
# IBM DB/2 z / OS jdbc:db2://localhost:50000/dbName
# IBM DB/2 jdbc:db2://localhost:50000/dbName:fullyMaterializeLobData=true;fullyMaterializeInputStreams=true;
# progressiveStreaming=2;useJDBC4ColumnNameAndLabelSemantics=2;
# SQL Server jdbc:sqlserver://localhost:1433;databaseName=dbName;selectMethod=cursor;sendStringParametersAsUnicode=false
# PostgreSQL jdbc:postgresql://localhost:5432/dbName
url: "jdbc:postgresql://dev-upgrade-db-svc:5432/postgres"
# driverClass -- jdbc class. Valid values are:
#
# Oracle oracle.jdbc.OracleDriver
# IBM DB/2 com.ibm.db2.jcc.DB2Driver
# SQL Server com.microsoft.sqlserver.jdbc.SQLServerDriver
# PostgreSQL org.postgresql.Driver
driverClass: "org.postgresql.Driver"
# pega.database.type Valid values are: mssql, oracledate, udb, db2zos, postgres
dbType: "postgres"
# For databases that use multiple JDBC driver files (such as DB2), specify comma separated values for 'driverUri'
driverUri: "https://jdbc.postgresql.org/download/postgresql-42.7.3.jar"
username: "postgres"
password: "postgres"
# To avoid exposing username & password, leave the jdbc.password & jdbc.username parameters empty (no quotes),
# configure JDBC username & password parameters in the External Secrets Manager, and enter the external secret for the credentials
# make sure the keys in the secret should be DB_USERNAME and DB_PASSWORD respectively
external_secret_name: ""
# CUSTOM CONNECTION PROPERTIES
# Use the connectionProperties parameter to pass connection settings to your deployment
# by adding a list of semi-colon-delimited required connection setting. The list string must end with ";".
# For example, you can set a custom authentication using Azure Managed Identity and avoid using a password.
# To pass an Authentication method and a managed identity, MSI Client ID,
# set: connectionProperties: "Authentication=ActiveDirectoryMSI;msiClientId=<your Azure Managed Identity>;"
connectionProperties: ""
rulesSchema: "rules"
dataSchema: "data"
customerDataSchema: ""
******
docker:
# If using a custom Docker registry, supply the credentials here to pull Docker images.
registry:
url: "pega-docker.downloads.pega.com"
username: "pega_provide_UserID"
password: "pega_provide_APIKey"
# To avoid exposing Docker registry details, create secrets to manage your Docker registry credentials.
# Specify secret names as an array of comma-separated strings in double quotation marks using the imagePullSecre>
imagePullSecretNames: []
# Docker image information for the Pega docker image, containing the application server.
******
# Cassandra automatic deployment settings.
cassandra:
enabled: false
persistence:
enabled: true
external_secret_name: ""
******
# Pega Installer settings.
installer:
image: "platform/installer:8.23.1"
# Set the initial administrator@pega.com password for your installation. This will need to be changed at first login.
# The adminPassword value cannot start with "@".
adminPassword: "install"
# Upgrade specific properties
upgrade:
# Type of upgrade
# Valid upgradeType values are 'in-place' , 'zero-downtime' , 'custom' , 'out-of-place-rules' , 'out-of-place-data' .
upgradeType: "in-place"
# Specify a name for a target rules schema that the upgrade process creates for patches and upgrades.
targetRulesSchema: "pega_rules"
# Specify a name for a target data schema that the upgrade process creates for patches and upgrades.
# For postgres databases that you are upgrading from Pega Infinity version 8.4.0 and later
# And for Oracle databases that you are upgrading from Pega Infinity version 8.4.3 and later.
targetDataSchema: "pega_data"
# Specify the username and password to access the pre-upgrade Pega Platform to perform pre- and post- actions during zero-downtime upgrades.
pegaRESTUsername: ""
pegaRESTPassword: ""
******
Note: 根据各自的需求进行配置项的更新。
部署 PEGA upgrade 容器
root@k8s-master:/vm-server/dev/pega_upgrade# helm install dev-upgrade-db pega/pega -n dev-upgrade --values pega_upgrade.yaml
NAME: dev-upgrade-db
LAST DEPLOYED: Thu Sep 26 22:58:36 2024
NAMESPACE: dev-upgrade
STATUS: deployed
REVISION: 1
TEST SUITE: None
查看容器
root@k8s-master:/vm-server/dev/pega23/k8s_deploy# kubectl get pod -n dev-upgrade
NAME READY STATUS RESTARTS AGE
dev-upgrade-db-65b74bcfdf-v5znb 1/1 Running 0 48m
pega-in-place-upgrade-c88g2 1/1 Running 0 2m53s
查看升级日志
root@k8s-master:/vm-server/dev/pega23/k8s_deploy# kubectl logs -f --tail 10 pega-in-place-upgrade-c88g2 -n dev-upgrade
[echo] Calling engine load utility...
[exec] Picked up JAVA_TOOL_OPTIONS: -Duser.home=/usr/share/pegauser
[exec] 2024-09-26 15:01:29.758 [main] INFO com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Starting...
[exec] 2024-09-26 15:01:29.992 [main] INFO com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Start completed.
[exec] 2024-09-26 15:01:29.995 [main] INFO com.pega.codeloader.MainKt - Successfully established connection to database
[exec] 2024-09-26 15:01:30.001 [main] INFO com.pega.codeloader.MainKt - Database Type...: PostgreSQL
[exec] 2024-09-26 15:01:30.001 [main] INFO com.pega.codeloader.MainKt - Database Version: 11.3 (Debian 11.3-1.pgdg90+1)
[exec] 2024-09-26 15:01:30.001 [main] INFO com.pega.codeloader.MainKt - Driver Type.....: PostgreSQL JDBC Driver
[exec] 2024-09-26 15:01:30.001 [main] INFO com.pega.codeloader.MainKt - Driver Version..: 42.7.3
[exec] 2024-09-26 15:01:34.082 [main] INFO com.pega.codeloader.engine.EngineCodeDeleter - Clearing existing contents of pega-enginecode:08-07-01
[exec] 2024-09-26 15:09:00.288 [main] INFO com.pega.codeloader.AbstractFastCodeLoader - Starting code import of 830 jars from /opt/pega/temp/PegaInstallTemp-26-September-2024-14.59.04/load/lib
[exec] 2024-09-26 15:09:00.826 [main] INFO com.pega.codeloader.AbstractFastCodeLoader - Loading with 2 thread(s)
[exec] 2024-09-26 15:09:00.838 [ForkJoinPool-1-worker-3] INFO com.pega.codeloader.AbstractFastCodeLoader - Loading base/activation-1.1.1.jar ...
[exec] 2024-09-26 15:09:00.838 [ForkJoinPool-1-worker-1] INFO com.pega.codeloader.AbstractFastCodeLoader - Loading base/java6/backport-util-concurrent-3.1.jar ...
[exec] 2024-09-26 15:09:07.783 [ForkJoinPool-1-worker-3] INFO com.pega.codeloader.AbstractFastCodeLoader - Loading base/java6/prbasejava6.jar ...
[exec] 2024-09-26 15:09:10.322 [ForkJoinPool-1-worker-3] INFO com.pega.codeloader.AbstractFastCodeLoader - Loading base/jing-1.0.jar ...
接下来等待数据库升级完成即可，容器状态为 Completed 表示升级已完成。
root@k8s-master:/home/myserver# kubectl get pod -n dev-upgrade
NAME READY STATUS RESTARTS AGE
dev-upgrade-db-65b74bcfdf-v5znb 1/1 Running 0 36h
pega-in-place-upgrade-c88g2 0/1 Completed 0 35h
查看部分升级日志
root@k8s-master:/home/myserver# kubectl logs --tail 20 pega-in-place-upgrade-c88g2 -n dev-upgrade
[java] 0.06 minutes, or 0.02% of the total time can be attributed to load 28 records from rule-obj-jsp.zip
[java] 0.24 minutes, or 0.08% of the total time can be attributed to load 22 records from rule-obj-fieldvalue_pega-lp-mobile.zip
[java] 0.29 minutes, or 0.1% of the total time can be attributed to load 402 records from rule-edit-validate.zip
[java] 0.03 minutes, or 0.01% of the total time can be attributed to load 1 records from rule-urlmappings.zip
[java]
[java] ************************************************************************
[java]
[copy] Copying 1 file to /opt/pega/kit/scripts/logs
[zip] Building zip: /opt/pega/kit/scripts/logs/Upgrade Finalization-CollectedLogs_2024-09-26_14-59-03.zip
[echo] Cleaning up temp directory...
[delete] Deleting directory /opt/pega/temp/PegaInstallTemp-26-September-2024-14.59.04
[delete] Deleting: /opt/pega/kit/scripts/resume.properties
Upgrade Finalization:
[echo] PegaRULES Process Commander database upgrade complete.
BUILD SUCCESSFUL
Total time: 452 minutes 51 seconds
2024-09-26 14:59:16,416 ( UpgradeDataModelImpl) INFO - Installed Product Versions:
2024-09-26 14:59:16,443 ( UpgradeDataModelImpl) INFO - {Instance: PEGARULES PROCESS COMMANDER!8.7.0, Upgraded from version: null, Build name: PRPC-8.7.0-163} (current version)
机械硬盘升级时间太感人了。
部署 PEGA Infinity 23
参考 PEGA Infinity 23 容器化部署 笔记中的下列步骤完成后续配置
- 安装 kafka 作为 pega 的外部 stream 节点
- 部署 PEGA Backing Services
- 部署 PEGA 节点
部署完成后查看容器信息
root@k8s-master:/home/myserver# kubectl get pod,svc -n dev-upgrade
NAME READY STATUS RESTARTS AGE
pod/clusteringservice-0 1/1 Running 0 2m49s
pod/dev-upgrade-batch-f678d9db9-6qlpn 1/1 Running 0 2m50s
pod/dev-upgrade-constellation-767554b58f-7glcg 1/1 Running 0 7h12m
pod/dev-upgrade-constellation-messaging-5547b9c98b-5cr59 1/1 Running 0 7h5m
pod/dev-upgrade-db-65b74bcfdf-v5znb 1/1 Running 0 45h
pod/dev-upgrade-kafka-controller-0 1/1 Running 0 78m
pod/dev-upgrade-srs-7cb7db96cf-2l5rm 1/1 Running 0 54m
pod/dev-upgrade-web-6954bb6c9f-sqs2d 1/1 Running 0 2m50s
pod/elasticsearch-master-0 1/1 Running 0 54m
pod/pega-hazelcast-0 1/1 Running 0 2m49s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/clusteringservice-service ClusterIP None <none> 5701/TCP 2m52s
service/dev-upgrade-constellation NodePort 10.109.143.165 <none> 3000:30225/TCP 7h12m
service/dev-upgrade-constellation-messaging NodePort 10.111.84.206 <none> 3000:31882/TCP 7h5m
service/dev-upgrade-db-svc NodePort 10.107.231.137 <none> 5432:30033/TCP 45h
service/dev-upgrade-kafka ClusterIP 10.99.36.197 <none> 9092/TCP 78m
service/dev-upgrade-kafka-controller-headless ClusterIP None <none> 9094/TCP,9092/TCP,9093/TCP 78m
service/dev-upgrade-srs ClusterIP 10.110.232.71 <none> 8080/TCP,80/TCP 54m
service/dev-upgrade-web NodePort 10.98.30.16 <none> 80:32643/TCP 2m52s
service/elasticsearch-master ClusterIP 10.102.86.43 <none> 9200/TCP,9300/TCP 54m
service/elasticsearch-master-headless ClusterIP None <none> 9200/TCP,9300/TCP 54m
service/pega-hazelcast-service ClusterIP None <none> 5701/TCP 2m52s
至此，升级和部署就已经完成啦，剩下的就是校验升级后的环境是否可用了。
升级前和升级后系统比较

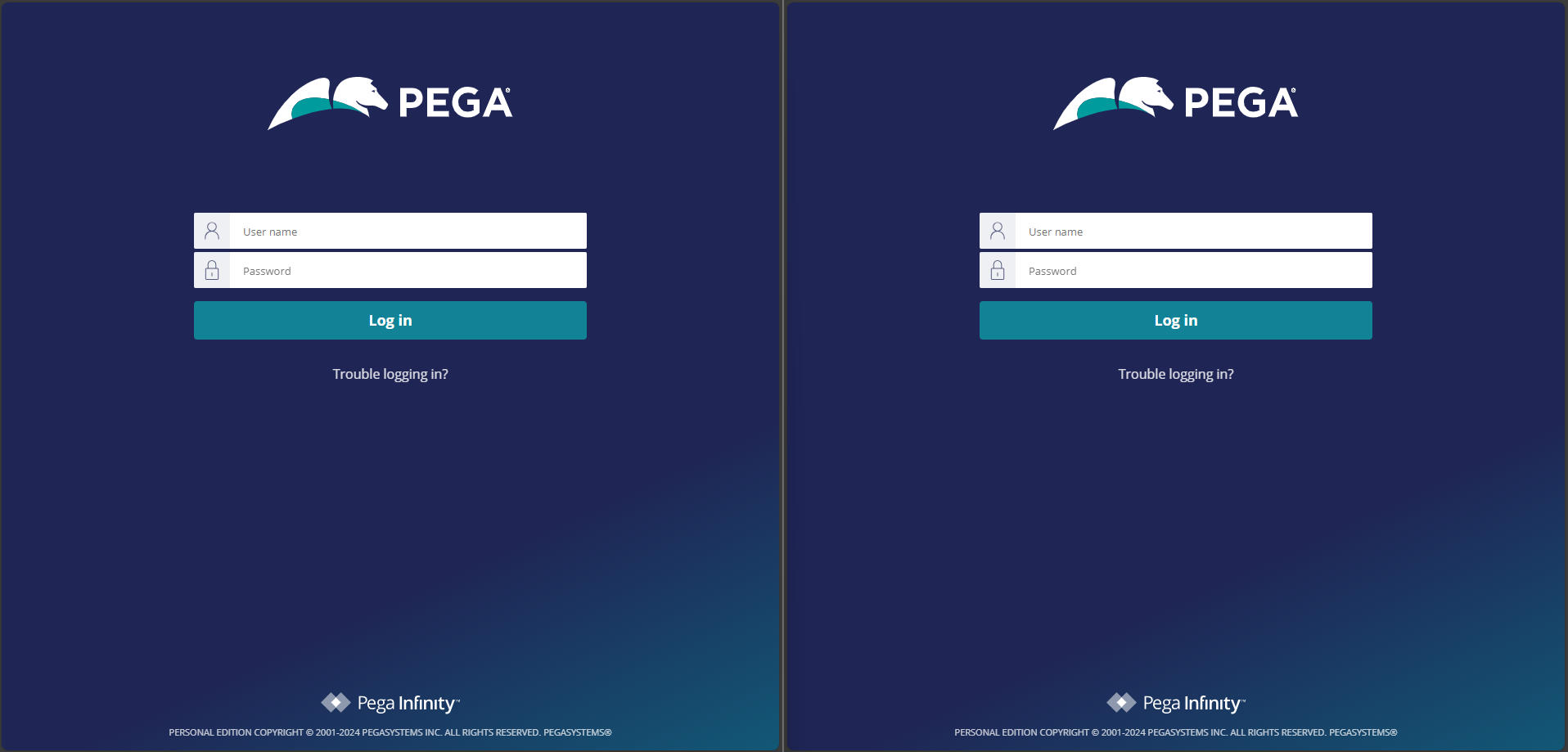

登录界面
本身便是 Personal Edition PEGA OOTB 的首页，没有变动。
Note: 左边为升级后的PEGA Infinity 23 的界面，右边为 PEGA 8.7 Personal Edition的界面。

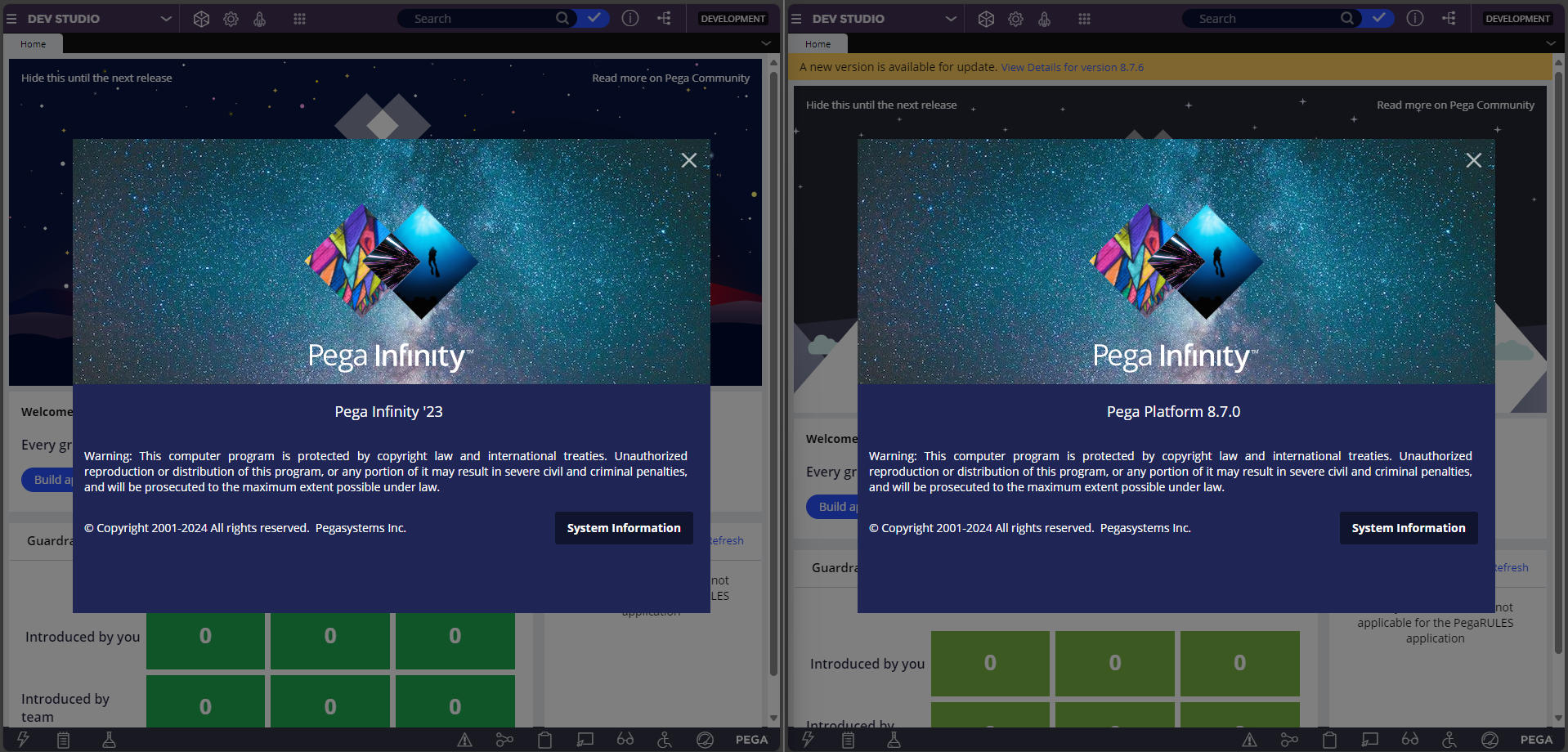

Pega Platform Dev Studio
可以看到 PEGA 版本从已升级为 Pega Infinity '23
Note: 左边为升级后的PEGA Infinity 23 的界面，右边为 PEGA 8.7 Personal Edition的界面。

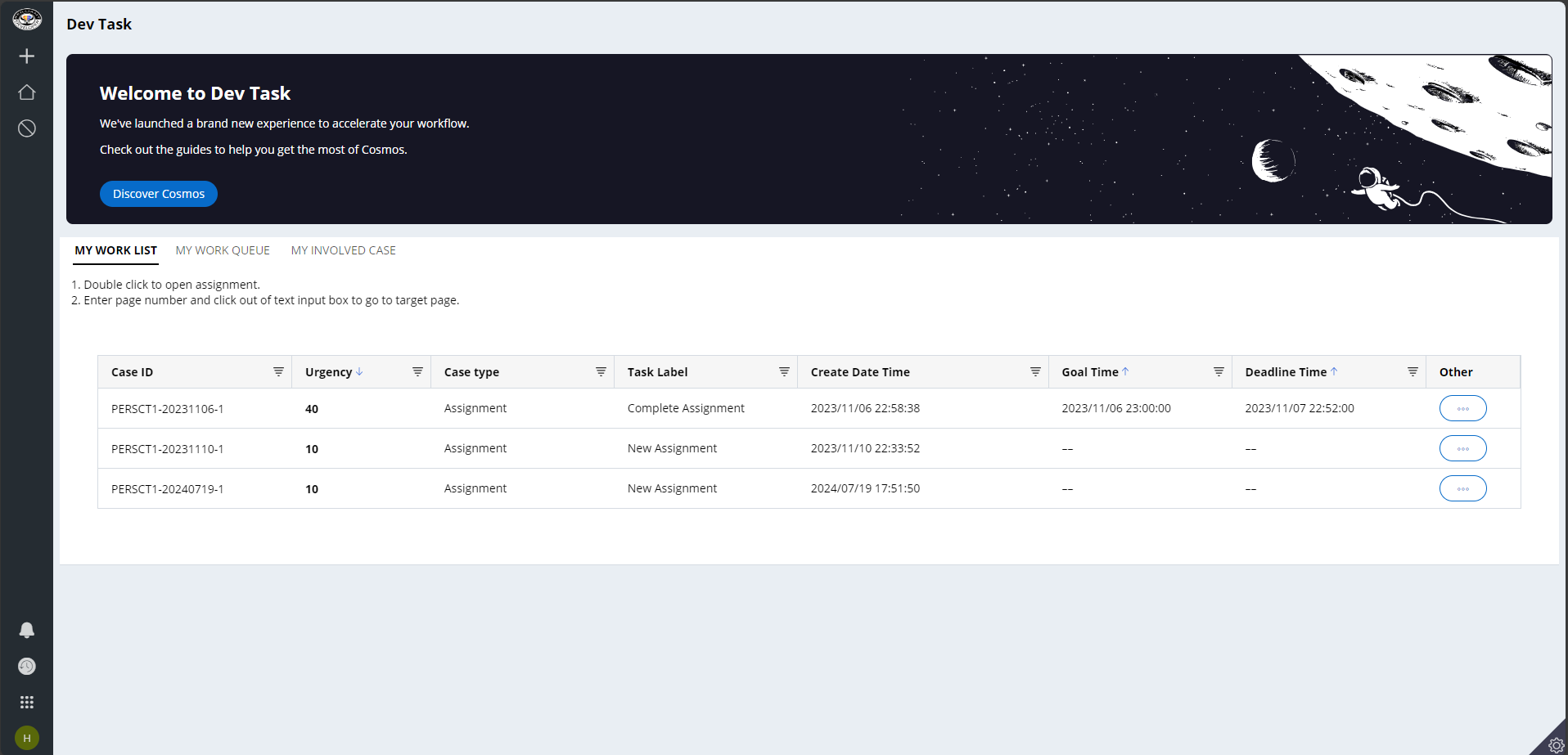

Application User Portal
升级前的应用采用的是 Cosmos UI，升级后保留并兼容原 UI 架构
第一张为升级后的PEGA Infinity 23 的界面，第二张为 PEGA 8.7 Personal Edition的界面，可以看到没有任何变化。
流程

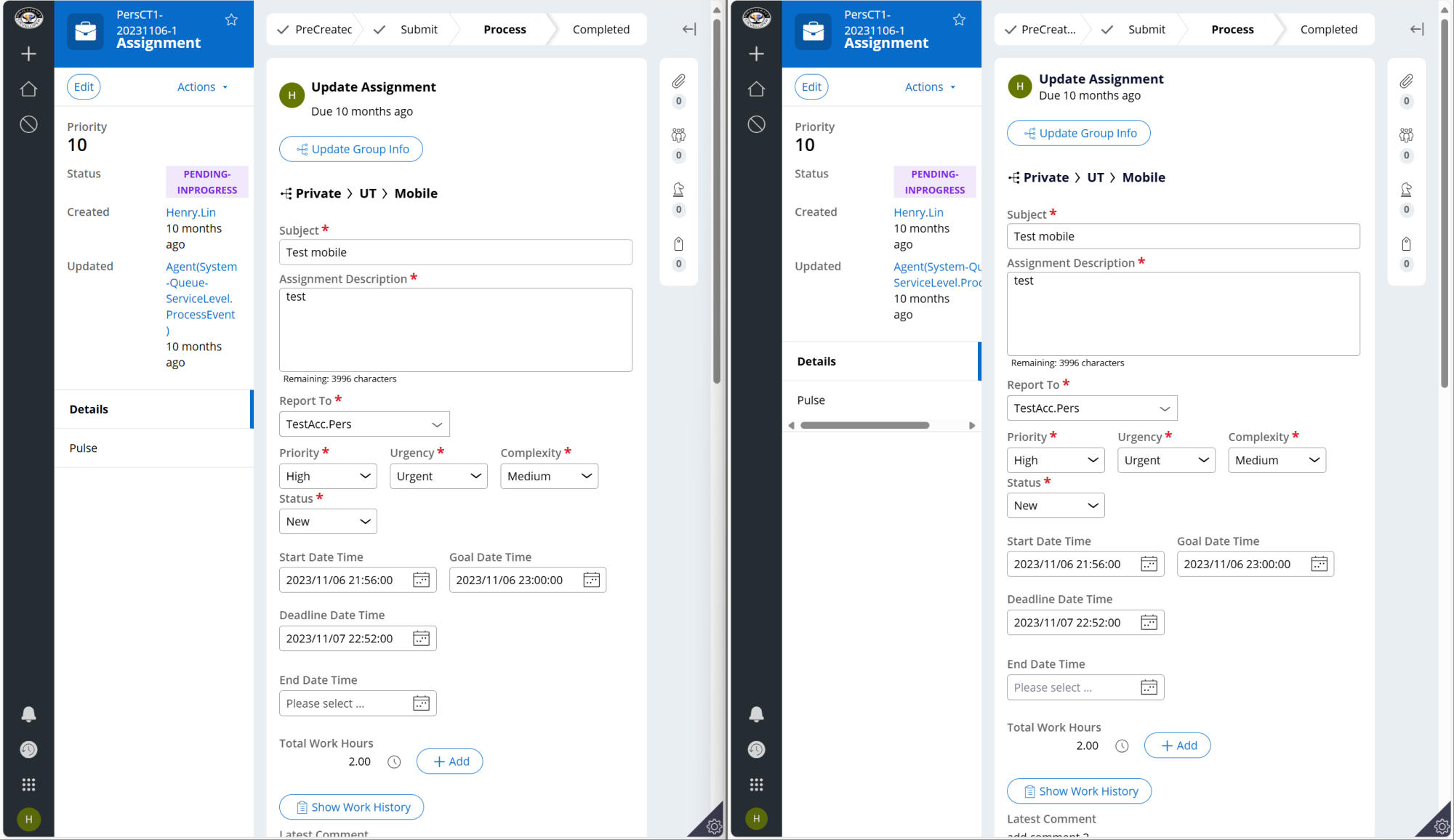

- Assignment 页面，左边为升级后的PEGA Infinity 23 的界面，右边为 PEGA 8.7 Personal Edition的界面。
可以看到升级后针对页面进行了一些优化，比如左边侧边栏没有出现横向的滚动条。

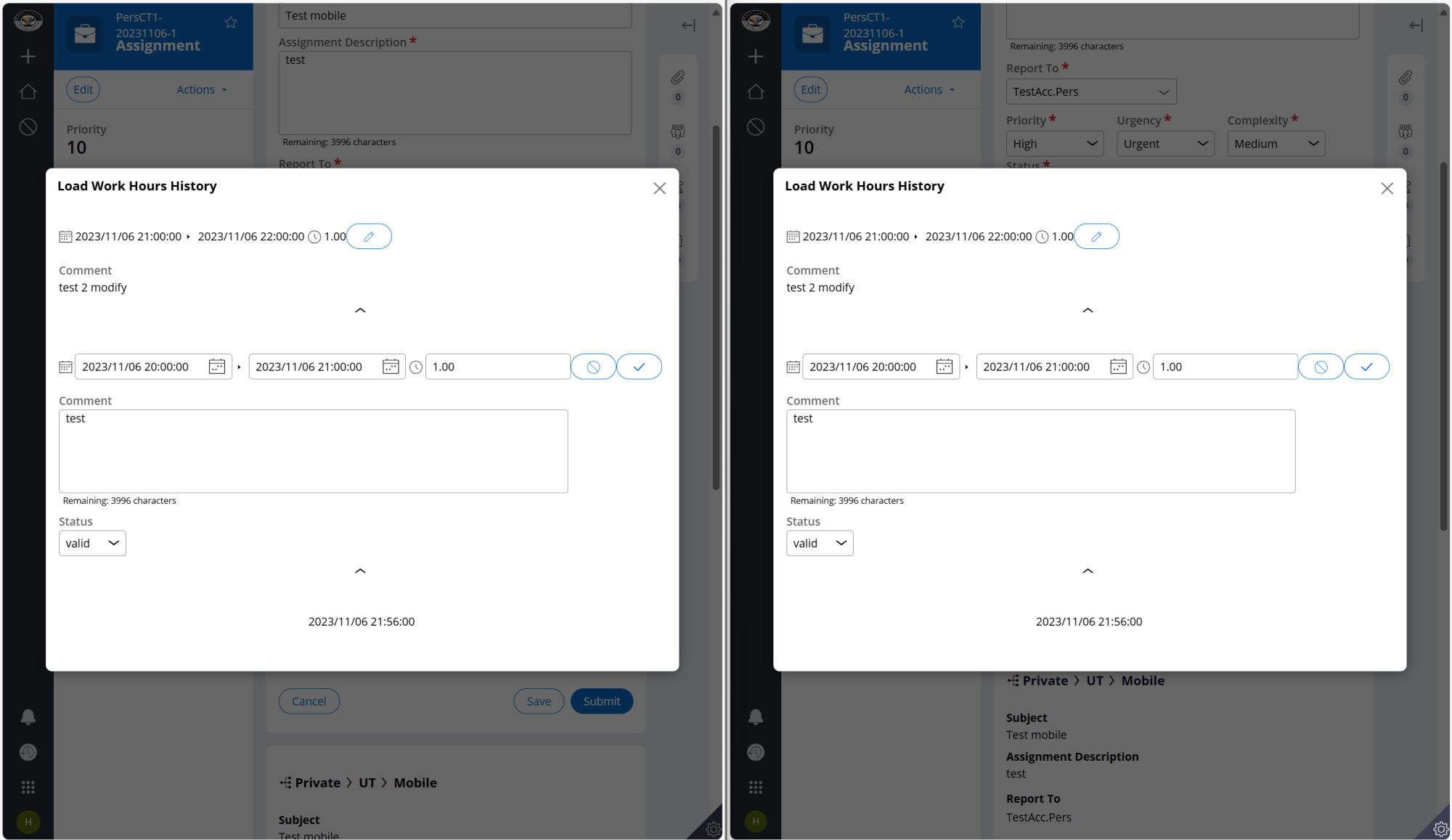

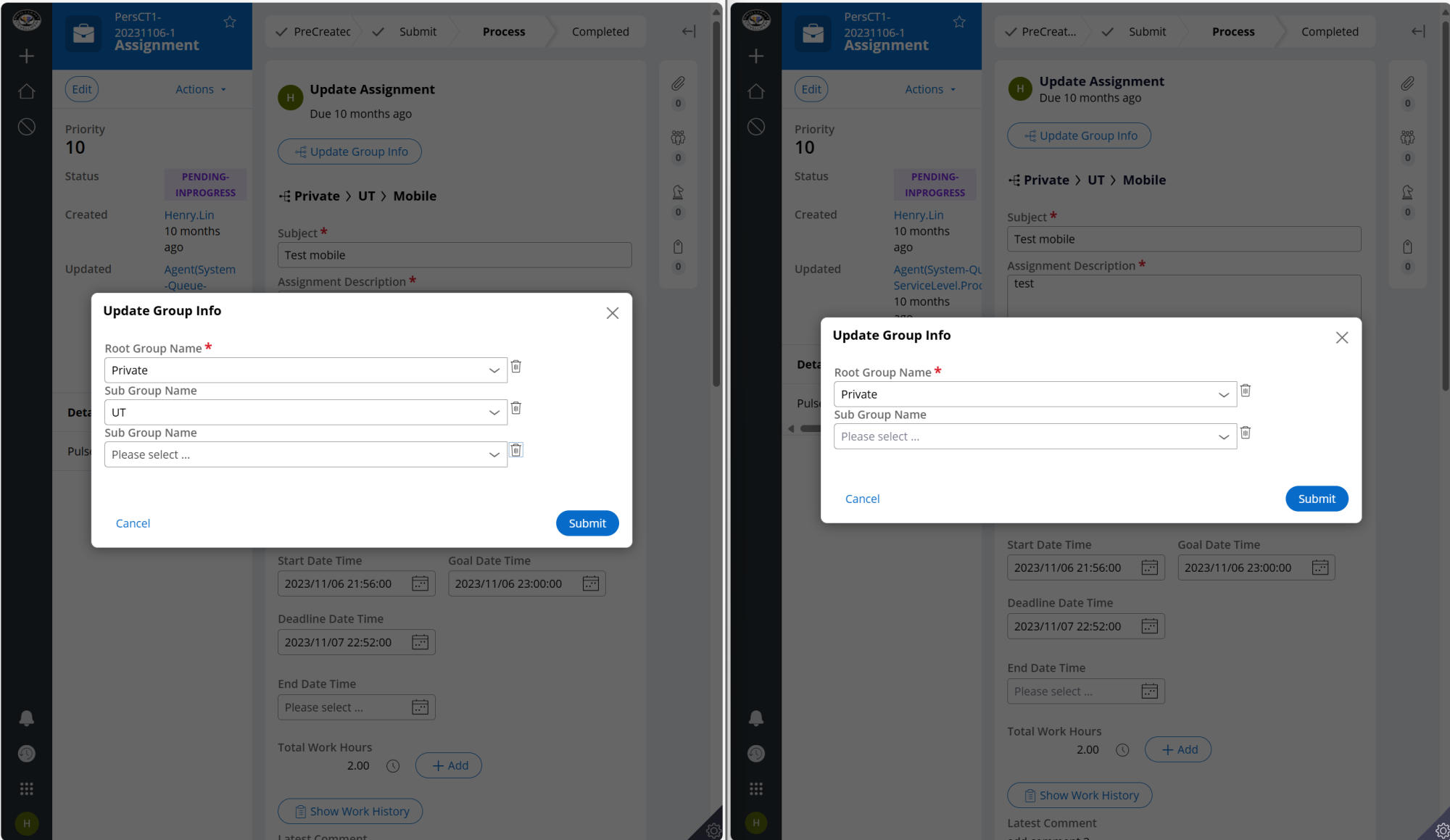

- Open Local Action 的弹出框也没有变化，基本控件能够正常使用。
- 特殊的递归加载 Section 自定义功能看下来也没有变化（这里的Sub Group Name 是一个递归加载Section的逻辑）

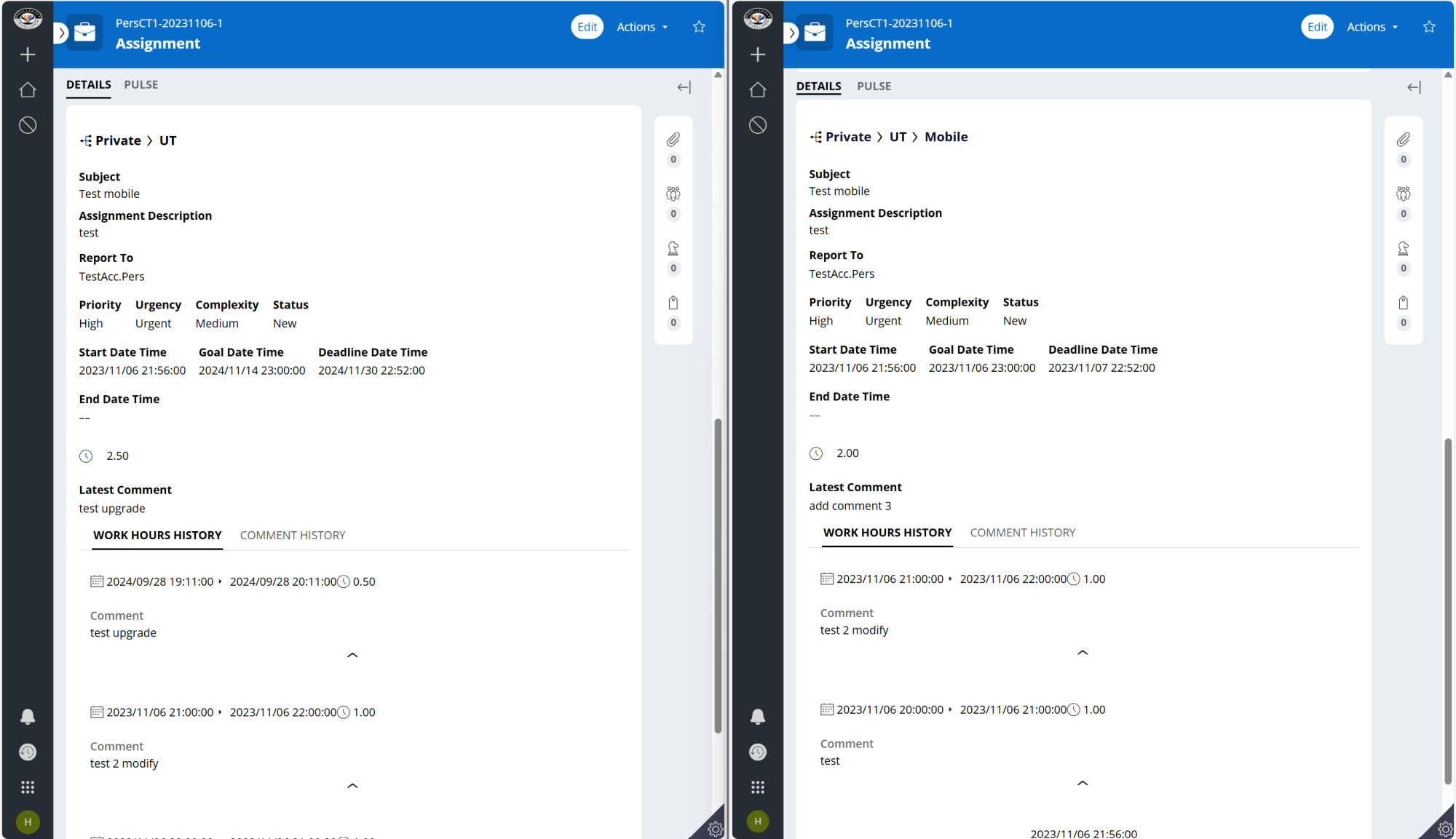

- 流程能够正常提交且正确更新数据。
其他配置

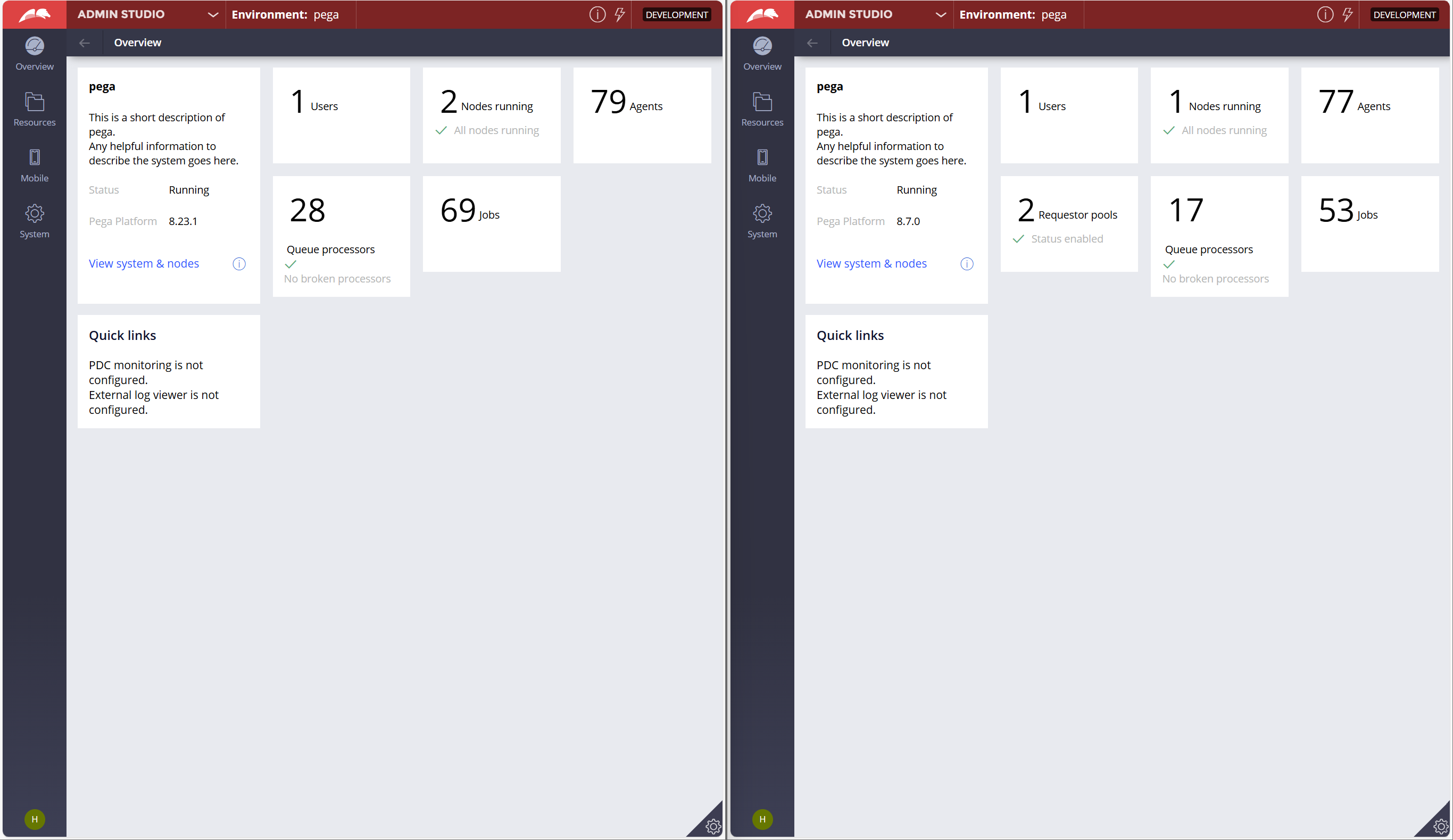

Admin Studio

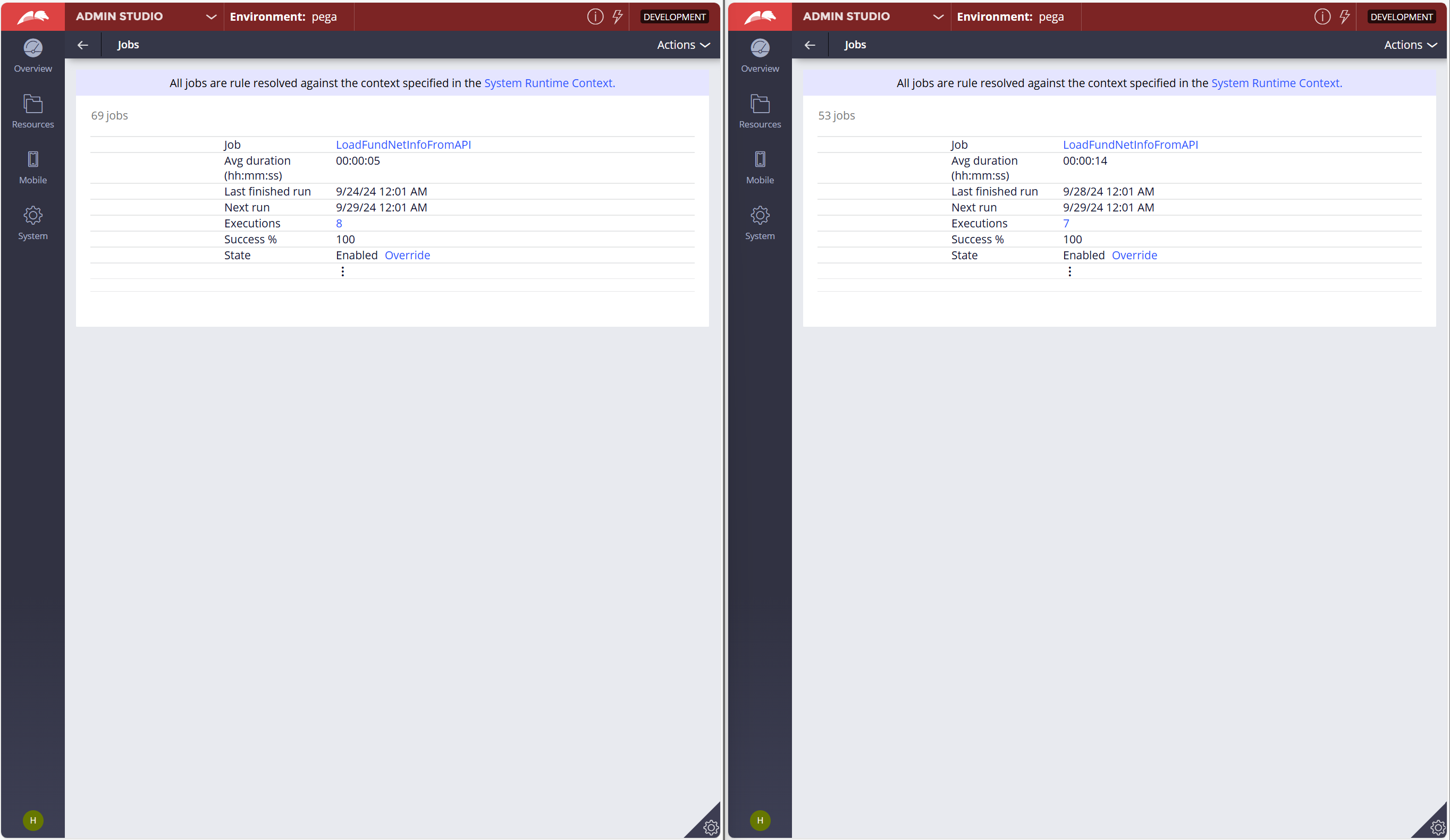

- Job Scheduler 也能够正常执行（这里系统升级准备和升级中间隔了一段时间，所以 Job 的 Last finished run 时间不匹配）

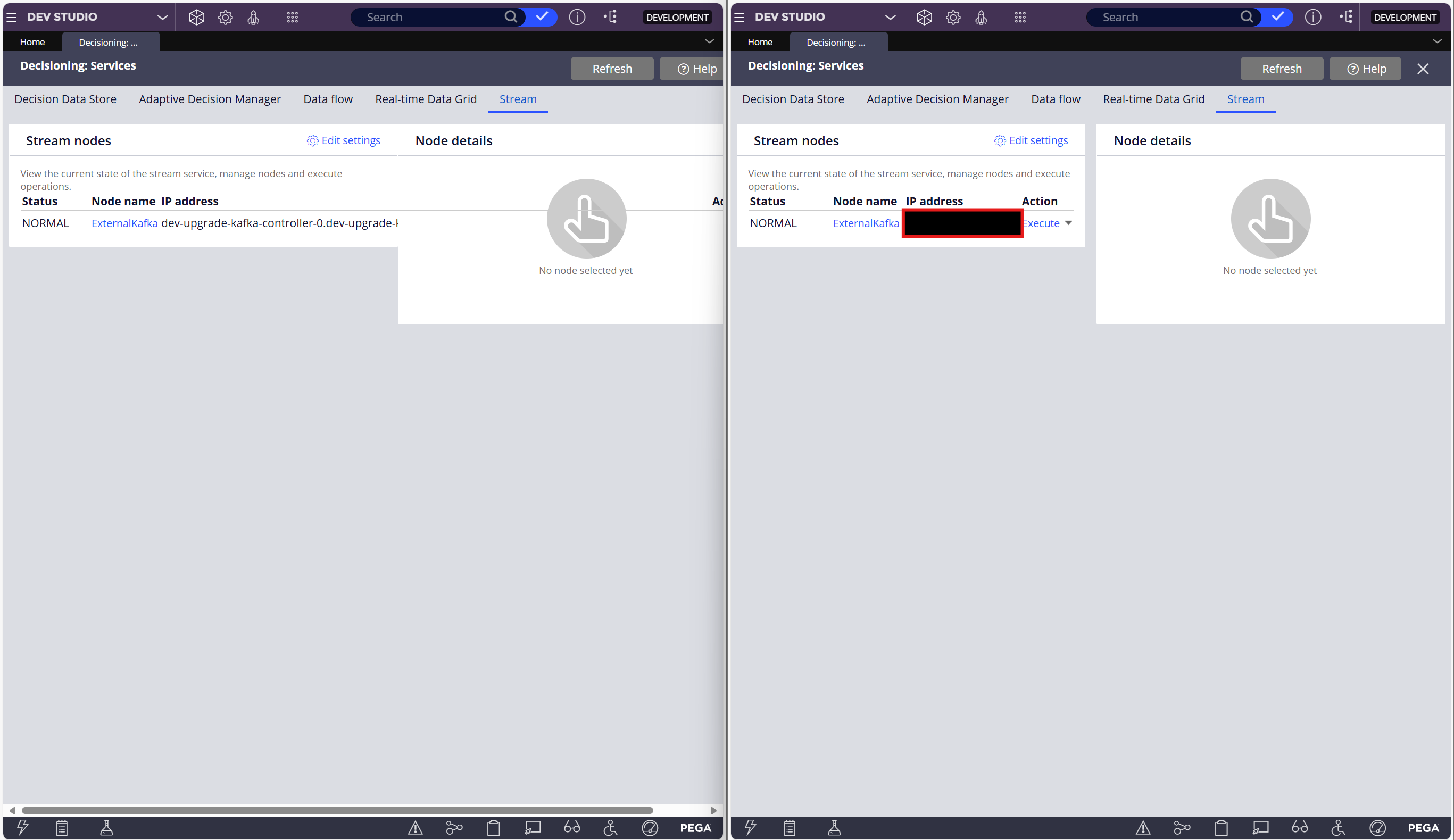

External Stream 节点
节点状态为 Normal 代表正常

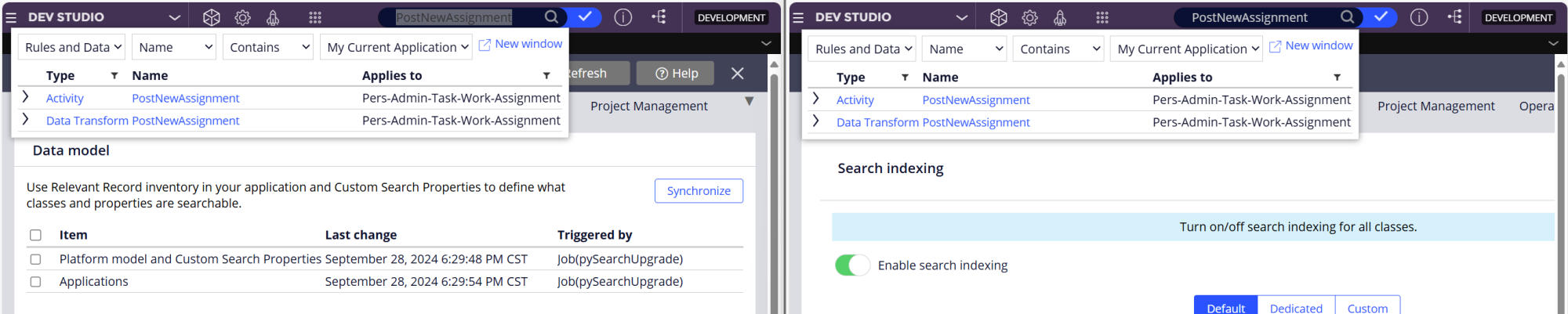

System Settings

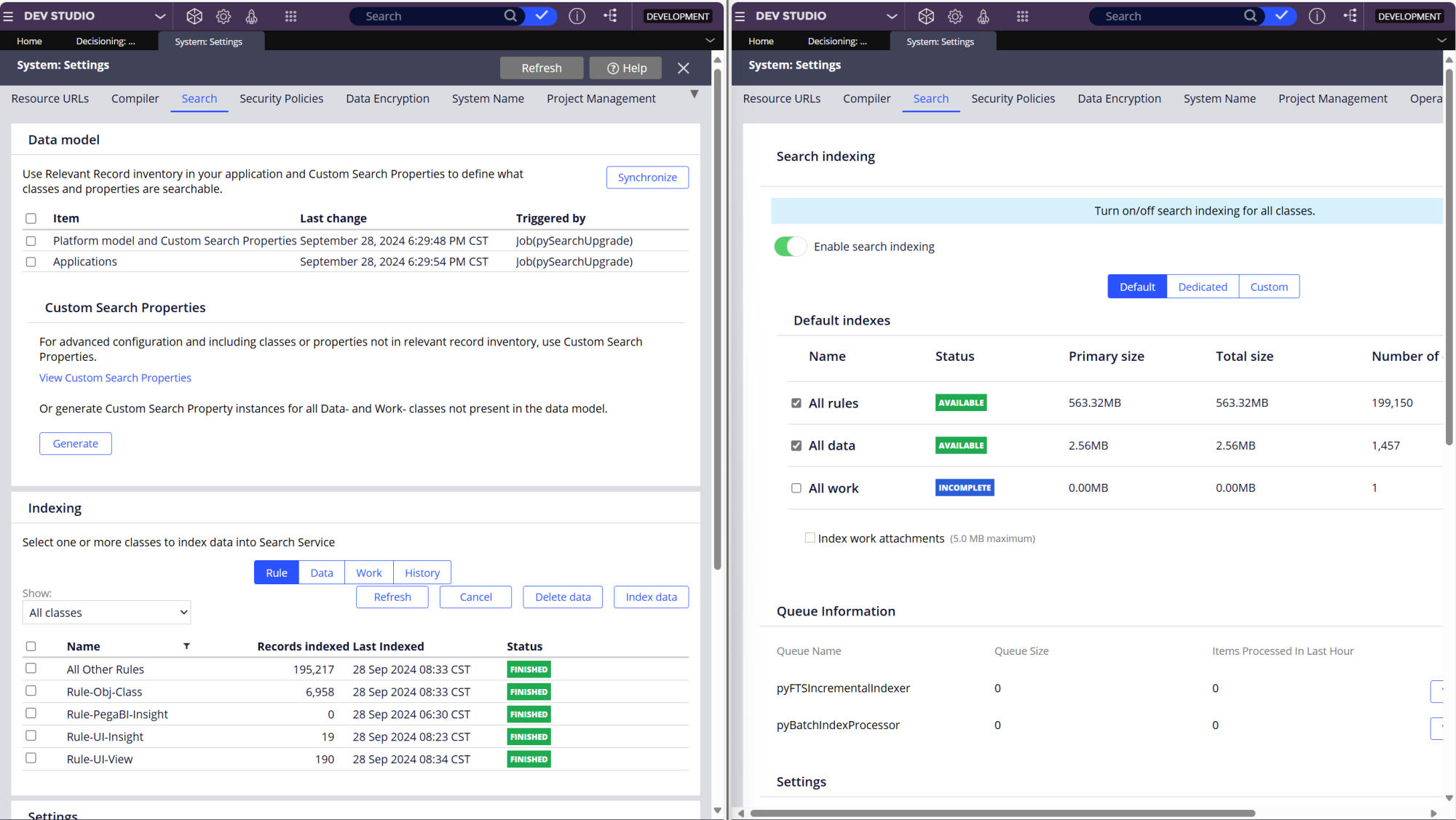

Pega Search Index 配置正常
简单的系统比较样例就到此位置啦，其他内容请自行对比~
