背景简介
Kubernetes Gateway API 是一种用于定义、管理和配置服务网格边缘流量的标准API，提供统一的入口流量管理。
本笔记以 NGINX Gateway Fabric 为示例
环境配置
- Kubernetes v1.29.1。【Kubernetes - 安装】
参考链接
示例需求
- 启动两个名为 coffee 的 pod
- 启动一个名为 coffee 的 ClusterIP service
- 配置 Gateway API 使外部可以访问 coffee
详细步骤
第一步： 安装 Gateway API
- 方法一：下载配置文件本地启动
获取 Gateway API 配置文件
$ wget https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.1/standard-install.yaml
启动 Gateway API
kubectl apply -f standard-install.yaml
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/referencegrants.gateway.networking.k8s.io created
- 方法二：一键启动
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.1/standard-install.yaml
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/referencegrants.gateway.networking.k8s.io created
- 方法三：根据
nginx-gateway-fabric配置启动
$ kubectl kustomize "https://github.com/nginx/nginx-gateway-fabric/config/crd/gateway-api/standard?ref=v1.6.1" | kubectl apply -f -
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io created
customresourcedefinition.apiextensions.k8s.io/referencegrants.gateway.networking.k8s.io created
第二步： 安装 NGINX Gateway Fabric CRDs
$ kubectl apply -f https://raw.githubusercontent.com/nginx/nginx-gateway-fabric/v1.6.1/deploy/crds.yaml
customresourcedefinition.apiextensions.k8s.io/clientsettingspolicies.gateway.nginx.org created
customresourcedefinition.apiextensions.k8s.io/nginxgateways.gateway.nginx.org created
customresourcedefinition.apiextensions.k8s.io/nginxproxies.gateway.nginx.org created
customresourcedefinition.apiextensions.k8s.io/observabilitypolicies.gateway.nginx.org created
customresourcedefinition.apiextensions.k8s.io/snippetsfilters.gateway.nginx.org created
customresourcedefinition.apiextensions.k8s.io/upstreamsettingspolicies.gateway.nginx.org created
第三步： 安装 NGINX Gateway Fabric
$ kubectl apply -f https://raw.githubusercontent.com/nginx/nginx-gateway-fabric/v1.6.1/deploy/default/deploy.yaml
namespace/nginx-gateway created
serviceaccount/nginx-gateway created
clusterrole.rbac.authorization.k8s.io/nginx-gateway created
clusterrolebinding.rbac.authorization.k8s.io/nginx-gateway created
configmap/nginx-includes-bootstrap created
service/nginx-gateway created
deployment.apps/nginx-gateway created
gatewayclass.gateway.networking.k8s.io/nginx created
nginxgateway.gateway.nginx.org/nginx-gateway-config created
默认使用的是 LoadBalancer 的模式配置，如需修改为 NodePort 的形式，请下载 deploy.yaml 后修改 service 配置。
****** --- apiVersion: v1 kind: Service metadata: labels: app.kubernetes.io/instance: nginx-gateway app.kubernetes.io/name: nginx-gateway app.kubernetes.io/version: 1.6.1 name: nginx-gateway namespace: nginx-gateway spec: externalTrafficPolicy: Local ports: - name: http port: 80 protocol: TCP targetPort: 80 nodePort: 30055 - name: https port: 443 protocol: TCP targetPort: 443 nodePort: 30056 selector: app.kubernetes.io/instance: nginx-gateway app.kubernetes.io/name: nginx-gateway type: NodePort ******
查看部署结果
$ kubectl get pod,svc -n nginx-gateway
NAME READY STATUS RESTARTS AGE
pod/nginx-gateway-84587bd6d-mjmxv 2/2 Running 0 17s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx-gateway NodePort 10.103.207.230 <none> 80:30055/TCP,443:30056/TCP 17s
第四步： 测试 pod 配置与启动
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: coffee
spec:
replicas: 2
selector:
matchLabels:
app: coffee
template:
metadata:
labels:
app: coffee
spec:
containers:
- name: coffee
image: nginxdemos/nginx-hello:plain-text
ports:
- containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
name: coffee
spec:
ports:
- port: 80
targetPort: 8080
protocol: TCP
name: http
selector:
app: coffee
创建 namespace
$ kubectl create namespace coffee
namespace/coffee created
启动 pod
$ kubectl apply -f coffee-deploy.yaml -n coffee
deployment.apps/coffee created
service/coffee created
查看 pod 状态
$ kubectl get pod,svc -n coffee
NAME READY STATUS RESTARTS AGE
pod/coffee-6d9ccc4bfb-98tr9 1/1 Running 0 2m30s
pod/coffee-6d9ccc4bfb-9wxvr 1/1 Running 0 2m30s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/coffee ClusterIP 10.105.32.154 <none> 80/TCP 2m48s
第五步： 创建 Gateway API resources
- 配置 Gateway
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: cafe
spec:
gatewayClassName: nginx
listeners:
- name: http
port: 80
protocol: HTTP
应用 Gateway
$ kubectl apply -f coffee-gateway.yaml -n coffee
gateway.gateway.networking.k8s.io/cafe created
- 配置 HTTPRoute
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: coffee
spec:
parentRefs:
- name: cafe
hostnames:
- "cafe-example-com"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: coffee
port: 80
应用 HTTPRoute
$ kubectl apply -f coffee-httproute.yaml -n coffee
httproute.gateway.networking.k8s.io/coffee created
查看完整配置
$ kubectl get pod,svc,gateway,httproute -n coffee
NAME READY STATUS RESTARTS AGE
pod/coffee-6d9ccc4bfb-98tr9 1/1 Running 0 155m
pod/coffee-6d9ccc4bfb-9wxvr 1/1 Running 0 155m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/coffee ClusterIP 10.105.32.154 <none> 80/TCP 155m
NAME CLASS ADDRESS PROGRAMMED AGE
gateway.gateway.networking.k8s.io/cafe nginx True 5m21s
NAME HOSTNAMES AGE
httproute.gateway.networking.k8s.io/coffee ["cafe-example-com"] 62s
查看 nginx-gateway 监听信息
$ kubectl exec -it -n nginx-gateway nginx-gateway-84587bd6d-mjmxv -c nginx -- nginx -T
******
server {
listen 80;
listen [::]:80;
server_name cafe-example-com;
location / {
proxy_http_version 1.1;
proxy_set_header Host "$gw_api_compliant_host";
proxy_set_header X-Forwarded-For "$proxy_add_x_forwarded_for";
proxy_set_header X-Real-IP "$remote_addr";
proxy_set_header X-Forwarded-Proto "$scheme";
proxy_set_header X-Forwarded-Host "$host";
proxy_set_header X-Forwarded-Port "$server_port";
proxy_set_header Upgrade "$http_upgrade";
proxy_set_header Connection "$connection_upgrade";
proxy_pass http://coffee_coffee_80$request_uri;
}
}
******

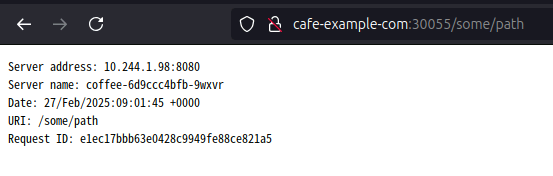

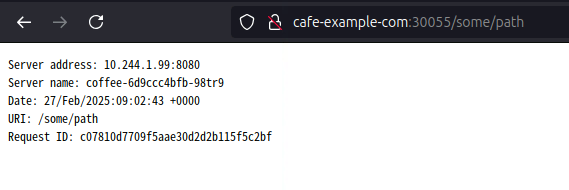

**第六步：**浏览器访问
以上便是本文的全部内容，感谢您的阅读，如遇到任何问题，欢迎在评论区留言讨论。
